0.6 / 1 KV Concentric Copper Conductor Connection to Frequency Converters Power NYCWY VFD Cable
Product Description
0.6/1 KV Concentric Copper Conductor Connection to Frequency Converters Power NYCWY VFD Cable
Application
Suitable especially for underground laying, for example in subscriber networks, power stations also as control cable for trasmissionof control impulses and test datas.
Construction
Conductor: solid or stranded red copper conductor Cl. 1 or 2, acc. to IEC 60228, DIN VDE 0295
10-16 mm2 - round solid cores
25-240 mm2 - stranded conductor
Insulation: PVC type DIV4
Cores color: acc. to DIN VDE 0293-308, HD 308 S2
Stranding: in layers
Inner sheath: fi ller compound
Screen: concentric conductor of corrugated copper wires + copper tape
Outer Sheath: black (similar RAL 9005), PVC type DMV5
Technical data:
Nominal voltage: Uo/U 0,6/1 kV
Test voltage: 4 kV
Hightest voltage:
Direct current system: 1,8 kV
Alternating current systems,
single-phase system: 1,4 kV
One conductor earthed three phase systems: 700 V
One conductor earthed three phase systems With concentric conductor : 1,2 kV
and a cross-section of 240 mm2 and above: 3,6 kV
Temperature range
Fixed laying: - 30℃ up to + 70 ℃
Flexible installation: - 5 ℃ up to + 50 ℃
Min. bending radius
Single core: 15 x d
Multi core: 12 x d
Max tensile stress: 50 N/mm2

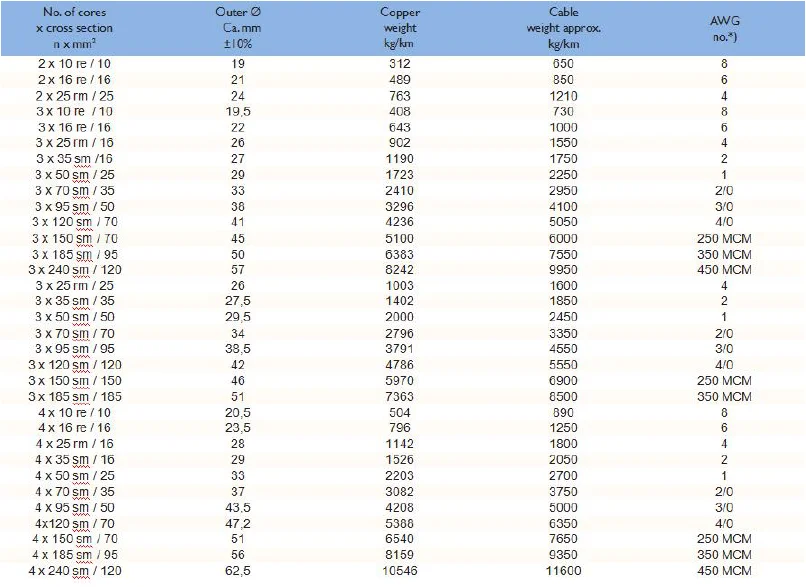

Dimension:
Packing Length: 100m, 500m or according to customers' requirement.
1. All inquiries will be replied in 24 hours.
2. OEM is highly welcomed. Our strong R&D team here to help.
3. Package: Standard export wooden or steel drums or as per your requirement.
4. Working time: 8:30am - 5:30pm, Monday to Friday.
5. Good after-sale service offered, please get back if any question. We ensure our products are 100% qualified before shipment.
6. For more service and details, Please feel free to send us message or inquiry.
Established in 1993 in China, Universe Cables Ltd is the flagship company of Universal Group. With a turnover exceeding US $3 million, it is one of China's largest manufacturers of automotive wires, electrical cables, as well as other types of cables.
The company has two manufacturing facilities in Shandong and Jiangsu provinces. Over the years, it has built a strong reputation by continuously upgrading its technological capabilities, promoting innovation, modernizing its manufacturing facilities, offering excellent services and maintaining remarkably high quality standards.
Universe Cables own fourteen cable production lines along with its sophisticated equipment and strict quality control system which produce over two million meters of automotive wire every day. In 2012, it invested US $16 million in advanced wire drawing equipment, thus becoming China’s leading manufacturer and supplier of fine copper wire, with an annual processing capacity of over 15000 tons.
Universe cables has obtained the ISO9001: 2000, CCC, UL. and British NQA TS16949, Etc. certification.
As a result of its constant commitment to innovation and forward-looking spirit, Universe Cable has built strategic partnerships with General motors China, Caterpillar China, SINOTRUK, State grid corporation of china, China railway projects, Chery Automobile Co., Ltd., Yutong Bus Co., Ltd., as well as other major companies.
