Aluminum Wire Grip for ACSR Conductor

  • Aluminum Wire Grip for ACSR Conductor
  • Aluminum Wire Grip for ACSR Conductor
  • Aluminum Wire Grip for ACSR Conductor
  • Aluminum Wire Grip for ACSR Conductor

Aluminum Wire Grip for ACSR Conductor

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 5 Days
    Packaging: Wooden or Paper Box
    Productivity: 100 Pieces/Day
    Brand: Qianyuan
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 100 Pieces/Day
    Certificate: ISO 9001 and Test Certed By China National Institute
    HS Code: 7616991090
    Port: Shanghai,Ningbo,Guangzhou

Basic Info

Model No.: 25-720mm2 ACSR

Product Description

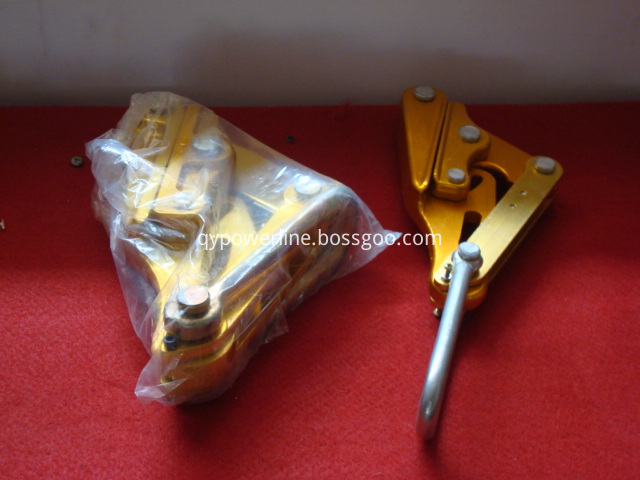

Aluminum Wire Grip for ACSR Conductor

wire grip, come along clamp, self gripping clamps, cable clamp, come along, wire grip clamp

Use and Characteristic

Aluminum ACSR Wire Grip, ACSR Come Along Clamp is suitable to tighten the conductors or adjust of sag.With high strength aluminum titanium alloy forging, the weight is light.The jaw part adopts a special texture processing so that it can firmly clamp the cable and does not hurt the inner core whether winter or summer.

Technical Data

Product No.

Model

Applicable conductor ACSR(mm²)

Max Gap

(mm)

Rated Load KN

Limit load KN

Weight kg

10229

LHD--1

25-70

14

10

20

1.5

10230

LHD--2

95-120

18

15

30

2.1

10231

LHD--3

150-240

24

25

50

2.5

10232

LHD--4

300-400

32

40

80

4.3

10233

LHD--5

500

34

45

90

6.5

10234

LHD--6

630

36

50

90

6.5

10235

LHD--7

720

38

60

110

9.2

come along clampself gripping clampscable clamp come along wire clamps



Yangzhou Qianyuan Electric Equipment Manufacturing & Trade Co.Ltd



Yangzhou Qianyuan Electric Equipment Manufacturing & Trade Co. Ltd was established in 2017(former Yangzhou Xiyi Power., Ltd which is established in 2008), and is located in Yangzhou city, Jiangsu province. The company is specialized in manufacturing and trade of electric power line transmission tools. Our main products are Anti twist Wire Rope, Stringing Roller, Hydraulic Crimping Tools, Engine Powered Winch, Wire Grip, Gin Pole, Hydraulic Reel Jacks, Mesh Sock Grips, Cable Conveyor, Lever Chain Hoists and so on, which are mainly supplied to power companies, railroad companies and other industry fields.

Qianyuan always considers the viewpoints and demands of customers while we are developing new products. We have a very strict quality control system, for that our products have already been used by the whole country extensively. According to the actual application within the scope of local electric Power system for several years, the electric power equipment of Qianyuan has been confirmed by high efficiency, convenient maintenance and good after-sale service. We really hope to develop friendships and do business with all friends for mutual benefit from all over the world to make an effort for both progresses in the fierce competitive world.

Our main products are as follows:

1. Anti Twist Wire Rope

Anti-Twisting Steel Wire Rope

Anti-Twisting Pilot Wire


2. Hydraulic Crimping Tools

75872cbc3e33dca581de68499b

764188b2840bc99f51f930eaa0



3. Stringing Roller

89e15f8f5e7e777df0ed2413e9

bdfa0979d232e776e886897a5f


4. Engine Powered Winch

04f5470097e2ef2b348f10f82d

34a8e3ee4378d90b6cbeb9bad3

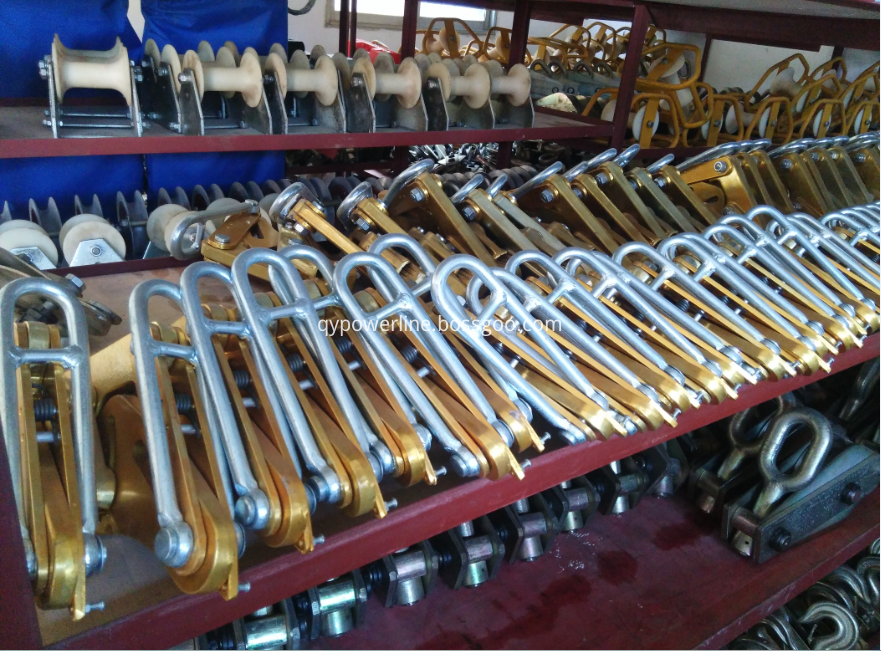

5. Come Along Clamp

59f1e83fbcb936a8b29f33f8a4

ba81b731040f01176cf818b17a


6. Cable Conveyor

db4fb198fa7b1a78d91c1989f6

cable blowing machine cable winch
